STRUCTURAL DESIGN - PART 08

English english language


13. Load combination 5A


  • 1,35 permanent loads + 0,54 traffic loads on the whole bridge + 1,5 uniform thermal variation of +15 C
  • mean values of the elasticity modulus for the whole structure

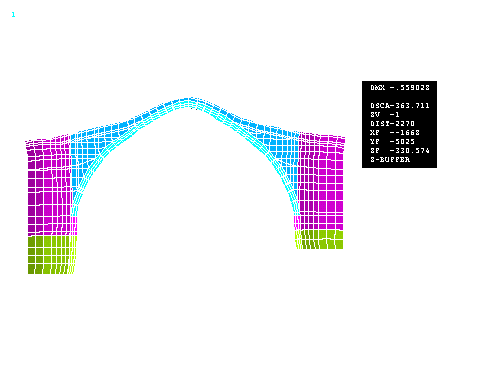

fig. 32 - deformed configuration (load combination 5A)

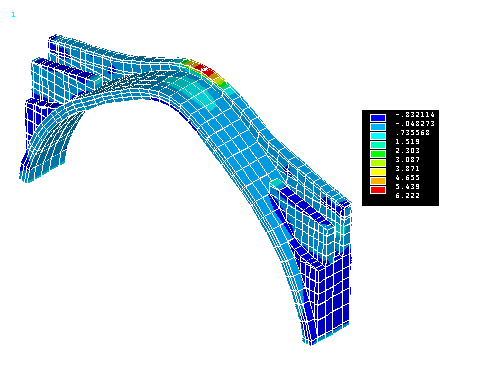

fig. 33 - principal stresses S1 (load combination 5A)

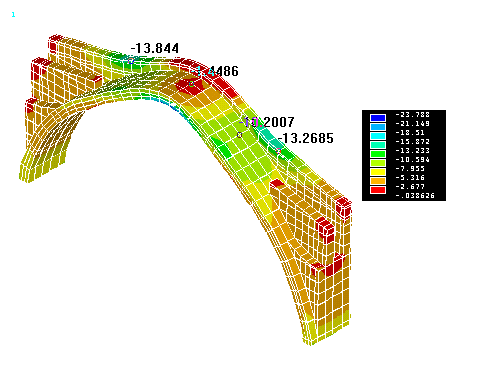

fig. 34 - principal stresses S3 (in kg/cm2) (load combination 5A)

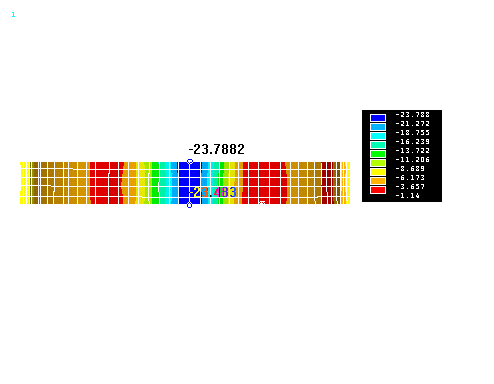

fig. 35 - principal stresses S3 (in kg/cm2) (load combination 5A)

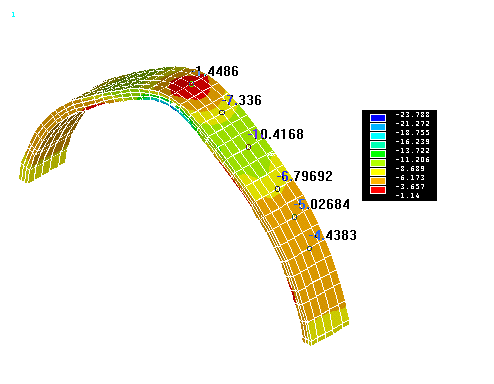

fig. 36 - principal stresses S3 in the arch (in kg/cm2)

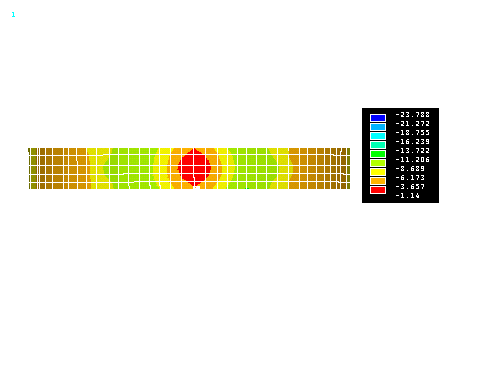

fig. 37 - principal stresses S3 (in kg/cm2) at the arch extrados (load combination 5A)

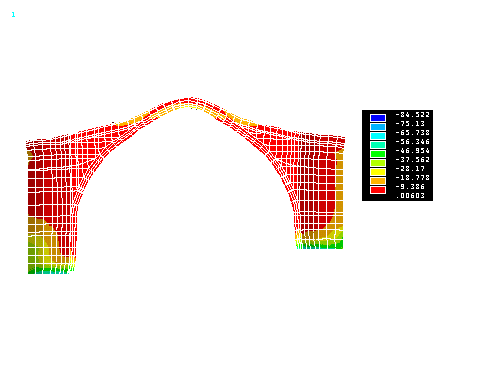

fig. 38 - principal stresses S3 (in kg/cm2) at the arch intrados (load combination 5A)


CREDITS:

Intellectual property of this report and of the design drawings is owned by the University of Florence - Department of Civil Engineering

author of the text: Prof.Eng. Andrea Vignoli other contributes have been mentioned in related paragraphs
