PHASE 15-16

English english language

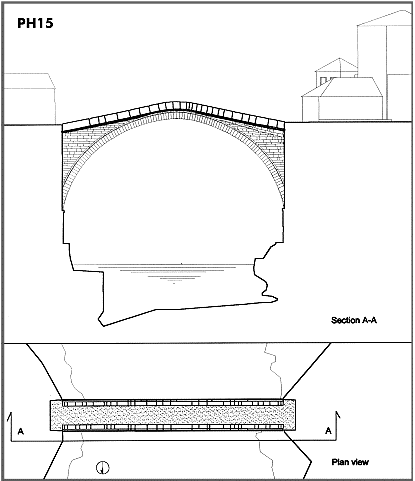

6.4.15 PH 15 - Upper cornice and parapets assembling


  • Assembling of upper cornice and related parapets (finalisation towards the bridge center line).
  • Parapets should be carefully linked to the cornices.
  • Parapets due to their size and weight should be placed on site carefully and symmetrically in order to load correctly the bridge.
  • Fill should be prosecuted with finer grain size and a regular surface should be obtained.

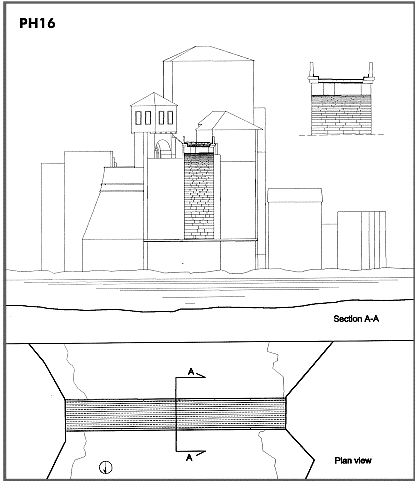

6.4.16 PH 16 - Waterproofing and mortar layer


  • Waterproofing of the bridge is required with the use of a purpose mortar which will also be the bed for the flooring.


CREDITS:

Intellectual property of this report and of the design drawings is owned by General Engineering s.r.l.

author of the text: arch. Manfredo Romeo other contributes have been mentioned in related paragraphs

- General Engineering Workgroup -

SOURCE:

Final Design Report
