PHASE 07-08

English english language

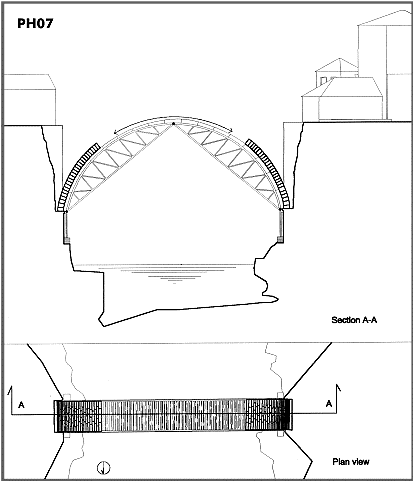

6.4.7 PH 07 - Load bearing arch assembling

  • Assembling of rows of voussoirs starting, strictly symmetrically, from both of the arch springers.
  • Starting stones at springer level should be adjacent to perfect masonry structure of the abutment.
  • Checks, by survey of control points, that shapes doesn’t change and no lowering take place.

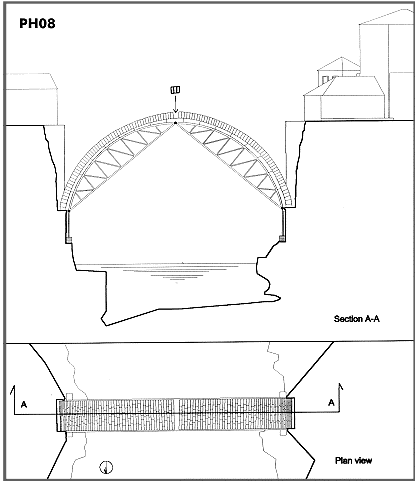

6.4.8 PH 08 - Key stone placement

  • Assembling of key stone row.
  • Last row will not have any metal dowel.
  • Checks, by survey of control points, that shape hasn’t changed and no lowering has taken place.


Intellectual property of this report and of the design drawings is owned by General Engineering s.r.l.

author of the text: arch. Manfredo Romeo – other contributes have been mentioned in related paragraphs

© - General Engineering Workgroup -


Final Design Report
