In the year 1999, when still everything was very much undefined about the reconstruction design, General Engineering was asked to provide preliminary technical documentation about the studies that could be worked out for the Old Bridge of Mostar.

On that occasion some tentatives were performed although the source data available were still very scarce and not in final formats.

The results and comments are contained in the following technical report: of course most of the contents are  not anymore updated any many things are innacurate, but this report let us understand, on one side, how difficult it was to start a work of the kind, and on the other, how many design strategies were correctly started from the very beginning.

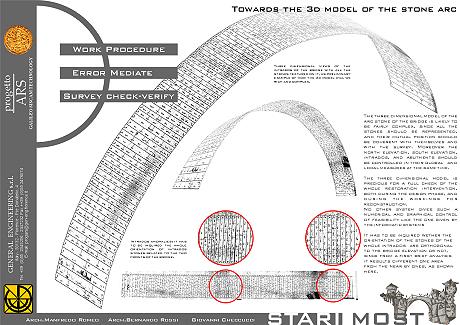

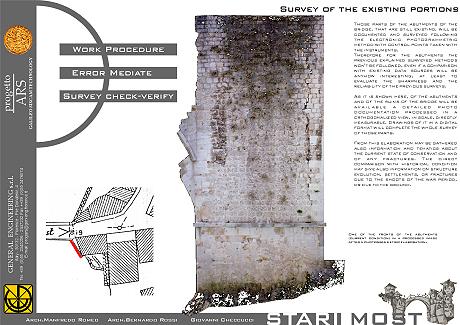

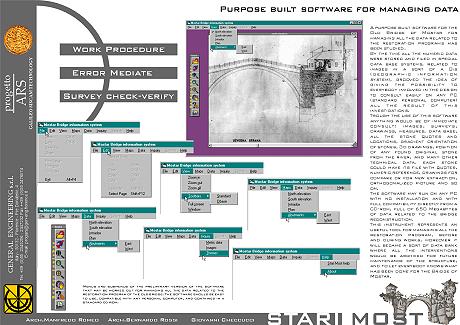

By the right side there are some pages of the report in its original layout.

Preliminary studies for the Old Bridge have been developed by General Engineering during the years 1996-1999 on its own, with no help, few data and no resources.

Authors of the text: Manfredo Romeo - Bernardo Rossi - Giovanni Checcucci.

In this first part of the document there are the following paragraphs:

towards the 3D model of the stone arch

survey of the existing portions

purpose built software for managing data








The three dimensional model of the arc stone of the bridge is likely to be fairly complex, since all the stones should be represented, and their mutual position should be coherent with themselves and with the survey. Moreover the north elevation, south elevation, intrados, and abutments should be controlled in their global and local measures at the same time.

The three dimensional model is precious for a full check of the whole restoration intervention, both during the design phase, and during the workings for reconstruction.
No other system gives such a numerical and graphical control of feasibility like the one given by the informatic systems

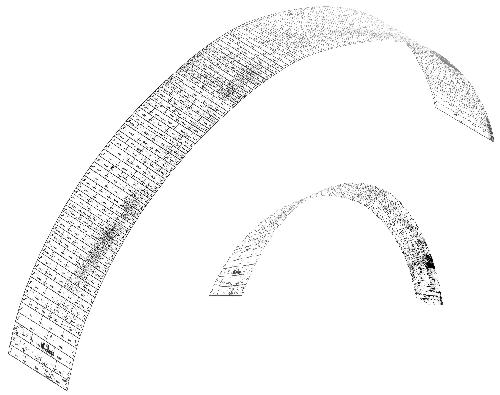

Three dimensional views of the intrados of the bridge with all the stones textured on it, as preliminary example of how the 3d model will be complex.

It has to be inquired wether the orientation of the stones of the whole intrados are orthogonal to the bridge elevation or not, since from a first brief analysis it results different one area from the near by ones, as shown here.

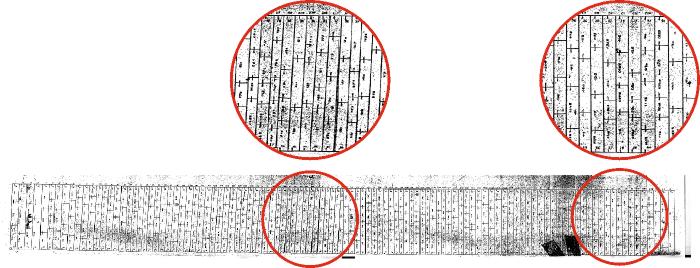

Intrados anomalies: it has to be inquired the whole orientation of intrados stones related to the two fronts of the bridge.



Those parts of the abutments of the bridge, that are still existing, will be documented and surveyed following the electronic photogrammetric method with control points taken with the instruments.
Therefore for the abutments the previous explained surveyed methods won't be followed, even if a comparison with existing data sources will be anyhow interesting, at least to evaluate the sharpness and the reliability of the previous surveys.

As it is shown here, of the abutments and of the ruins of the bridge will be available a detailed photo documentation processed in a orthogonalized view, in scale, directly measurable. Drawings of it in a digital format will complete the whole survey of those parts.

From this elaboration may be gathered also information and tematics about the current state of conservation and of any fractures. The direct comparison with historical condition may give also information on structure evolution, settlements, or fractures due to the shoots of the war period, or due to the ground.

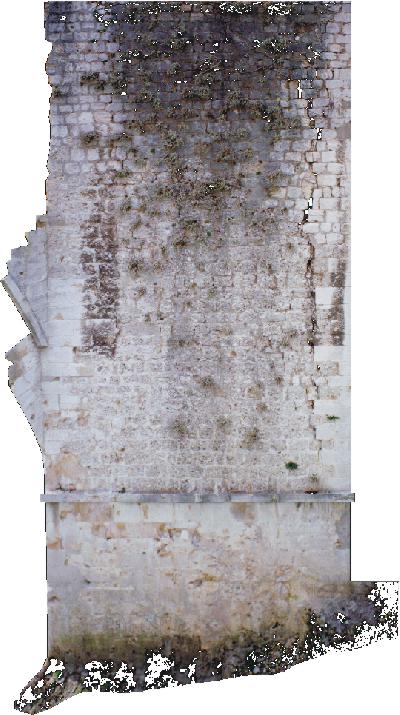

One of the fronts of the abutments (current condition) in a processed image after a photogrammetric elaboration.

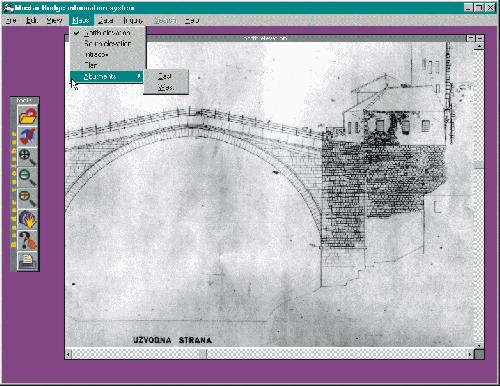

A purpose built software for the Old Bridge of Mostar for managing all the data related to the restoration programs has been studied.
By the time all the numeric data were stored and filed in special data base systems, related to images in a sort of a Gis (geographic information system), grooved the idea of giving the possibility to everybody involved in the design to view easily on any PC (standard personal computer) all the result of this investigations.
Trough the use of this software anything would be of easy check: images, surveys, drawings, measures, data base, all the stone dimensions and locations, gradient orientation of stones, 3d drawings, position of any found original stone from the river, and many other technical data. each stone could have its file with dimensions, numeric reference, drawings for compare or for new extraction, orthogonalized picture and so on.
The software may run on any PC with no installation and with full compatibility directly from a CD-rom, full of 650 Megabytes of data related to the bridge reconstruction.
This instrument represents an useful tool for managing all the restoration plan, before and during works, moreover it will became a sort of data base where all the interventions would be archived for future maintenance of the structure, and to let everybody knows what has been done for the Bridge of Mostar.

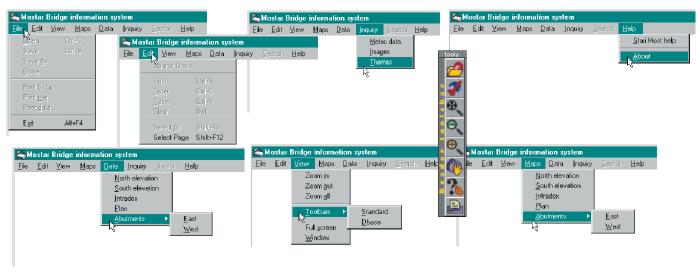

Menus and submenus of the preliminary version of the software that may be worked out for managing all the data related to the restoration program of the old bridge. The software should be easy to use, compatible with any personal computer, and contained in an ordinary cd-rom.

author of the text: arch. Manfredo Romeo; arch. Bernardo Rossi; tech. Giovanni Checcucci
