BRIDGE DESCRIPTION - PART II

English english language


2.3.2 Architectural description


The Old Bridge of Mostar, (Stari Most), was a stone bridge of very slender and elegant shapes: its profile and its skyline were so thin and so high over the river waters that it was hardly to believe that such a structure could be worked out of huge stone blocks. Built in tenelija stone, it was of a light tone colour, bright and changing during daytime depending on sun colours.

The bridge was mainly conceived as a functional structure, aimed mostly at connecting the two banks of the river: it may hadn't, originally, any additional ceremonial and monumental meaning, and its design has been quite influenced by the morphology of the site which is totally matched by its abutment walls. The whole monumental complex, including the adjacent fortification towers, is totally part of the site, castled on the rocks and winding the banks, it is not the result of a single design work, but of a development during time, that has followed the historical happenings and the need for protecting and keeping the bridge, that has marked the town even in the name of "Mostar".

The bridge had few esthetical devices and no ornamental element; its architectural beauty and value were to be found in the simplicity and in the essentiality of the structure: the shapes of the bridge were not linked to any time, to any style and to any fashion, in a way that the bridge of Mostar has always been admired as symbol.

fig09 – old Bridge of Mostar: north and south elev.; (ancient pictures provided by the Institute for Cultural Heritage of Mostar)

Two cornices, only, with angled section profile, ran on each elevation and met at the keystone with a refine balance among tangency and jutting out: both of them had a protective function to rain waters, and both of them marked different structural elements of the monument, being part of it and not pasted. One more bigger cornice, per side, determined the bridge arch springer level, prosecuting along the abutment walls upstream and downstream.

The stone surfaces were nor polished neither regular: they were perfectly cut and hand worked, but characterised by frequent ordinary constructive inaccuracies from which it was possible to perceive their materiality and that they were made of stone. Out of more than one thousand stone blocks, there were not two elements of identical dimensions, and even the arch voussoirs, were all different and with remarkable variations, as a consequence of the random, natural-determined, availability of the stones in the quarry. Undoubtedly most of the architectural beauty of this monument was in the refined tuning among a globally compact appearance of the structure, caused by the thin joints of the masonry, and an unforeseeable and fragmentary close-view appearance due to the small assembling imperfections of stone blocks of different shapes and sizes.

fig10 – the Old bridge of Mostar, north and south elevation before and after war events (rectified photogrammetric elaboration)

The one-span bridge had an intrados curvature which was close to a circle having the center lowered of approximately cm 296 compared to the east springer level; but the circle shape may be not enough to describe the curvature wholly, that slightly changed at the imposts level to better match with the straight profile of the abutment wall, and was slightly raising at the key stone level. The curvature exact original shape was anyhow perturbed by irregularities that may have been caused by settlements and by ordinary construction imperfections, (for a detailed analysis of the curvature refer to following paragraphs).

The bridge main dimensions were the following: span was of cm 2871 by the north side and of cm 2862 by the south side and the arch raise was approximately of cm 1206. Generally speaking measures were obviously often variable and moreover the bridge impost level by the west bank was approximately 12-13 cm higher than the east level.

The load bearing arch had a depth of about cm 395 and an height of cm 80, and was composed of 111 rows (a number which was probably planned and not randomly obtained), and rows counted from 2 to 5 voussoirs, (more frequently 3-4). Voussoirs, (arch stones), were of variable shapes and sizes but the average stone block had the following dimensions: cm 40 × 80 × 100.

The bridge arch and elevations were made of tenelija stone, (local lime stone), and connections were performed with the use of mortar and of metal reinforcing cramps and dowels. The use of forged iron devices to strengthen the structure was one of the peculiarities of the monument and was applied almost to every element of the bridge following different assembling methodologies.

Being the bridge arch, at the top, considerably higher than the adjacent street levels (about cm 270), the footpath over the bridge was steep and tilt in a way that all the architectural elements, like spandrels, parapets and upper cornices, were following these directions until the top. Spandrel walls of the bridge were divided from the arch by a stone cornice, (lower cornice), that followed the arch curvature, and were limited on top by another cornice, (upper cornice), of straight but tilt profile.

Lower cornice stones were jutting out from the load bearing arch and determined the base from which started the spandrel walls; at the same time upper cornice was jutting out from the spandrel walls and finally parapets were almost aligned with the below spandrel walls, but slightly leaning outwards while getting to the bridge top, as to give an optical effect of a wider footpath.

The pavement was made in krecnjak stone, (limestone hard and resistive marble-like), and was characterised by transversal rib-steps to avoid slipping; flooring was assembled on a mortar layer which had, most probably, also a waterproofing function together with the below layer made of "terra rossa", (heated aggregates of red colours given by the presence of bauxite).




2.3.3 Stari most hidden shapes


The ancient bridge of Mostar had an architectural shape and an appearance which was, during time, interpreted and differently represented, in a way that lead us to think that, having the monument also a symbolic meaning for the people, it may have been purposely changed; but trough a more detailed analysis it is possible to hypothesise that something, in the shape of the bridge, contributed to these events.

fig11 – ancient graphic representations of the Old Bridge of Mostar

In other words, analysing the drawings and the graphic representations of the bridge, either recent ones, either ancient ones, it seems that arch shape has been frequently changed in to a peak arch.

This, in some cases, is obviously due to a free interpretation of the view, but in some others it is most likely that the bridge of Mostar had, (and maybe still have), in the people ideal imaginary, a peak arched curvature.

fig12 – ancient graphic representations of the Old Bridge of Mostar

The reason of the aforesaid phenomena could be explained trough a study of the geometry of the structure and of the site that may have led to slight and interesting optical effects:

  • the bridge upper cornices and parapets, with their straight but tilt direction, gave the impression that the arch were raising more than it actually was;
  • the bridge was most frequently viewed from angled point of views, (adjacent streets), that contributed to make the bridge look more peaked than it was;
  • finally, the bridge arch, had some very slight raising at the key stone that may be noticed even trough the observation of ancient pictures (refer to following paragraphs for more notes).

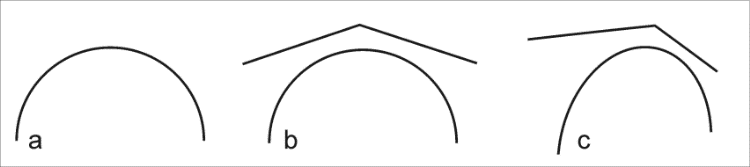

fig13 – geometrical examples: picture a represents a round arch, the same is represented in picture b, but the arch looks slightly different due to the tilted lines, that make it more slender, and in a perspective view, c, this impression is even accentuated.

The mentioned peculiarity may be not neglected, since, even if it is a difficult matter to be evaluated and quantified, (specially now that the bridge has been destroyed), is anyhow an architectural characteristic of the monument that made it unique, it was a sort of characteristic that was hardly visible, and that was more perceived like an impression or a feeling.




2.3.4 Structural description


On the structural side, the bridge was quite interesting, and from the analysis of the inner elements, it is possible to appreciate fully the engineering level of the time and the wise devices adopted for the long lasting of the structure.

Main structural element of the bridge was the load bearing arch, which was undoubtedly the portion of the monument that required the maximum care and resources. The arch, thank to its shape, and to the configuration of the above dead loads, was subjected to compressive strengths and the stone blocks would have been enough and perfectly suitable for the purpose, but additional devices were provided to strengthen the vault: forged iron dowels were inserted between adjacent voussoirs, and forged iron cramps were put over the extrados and across the side joints. This way each connection joint was guaranteed either by the mortar, either by the metal reinforcements.

Over the load bearing arch there was a masonry rib with an important structural function that allowed, together with the spandrel walls, a stiffening action of the whole bridge. Among spandrel walls and stiffening rib there were two lightening voids that contributed in reducing the loads over the arch, while fill was wisely provided only next to the arch springers to stabilise the structure and the vault.

The lightening voids were covered by stone krecnjak slabs and above them only thin layers of aggregates were settled until the pavement.

Undoubtedly the structure of the bridge shows an high and impressive level of knowledge of all the requisites that were necessary for the stone bridge and shows, as well, a refine constructive technique; moreover, it has to be noted, that all the structural choices were purposely performed and the elements were carefully optimised and dimensioned to guarantee the resistance and long lasting of the monument.

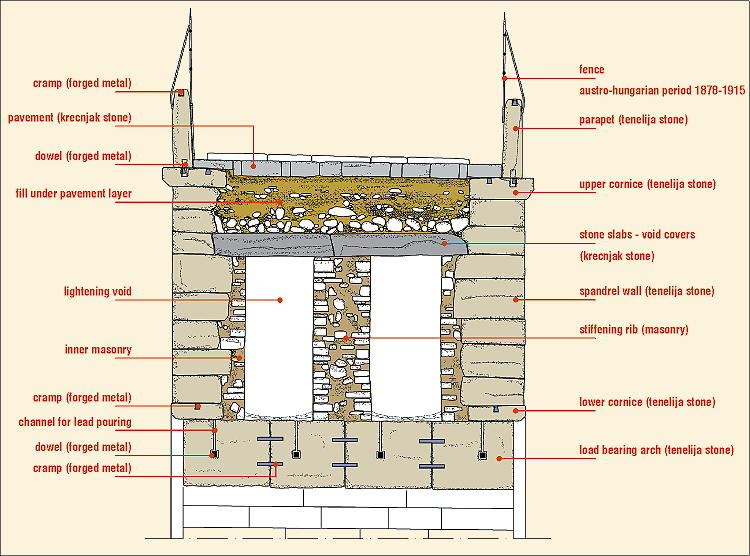

fig14 – bridge transversal section with technological details

The bridge architectural appearance and its structure were strictly related, in a way that it was possible to gather partially the inner structure even trough the observation of the outer elevations, where cornices marked the most important structural sections of the bridge.


CREDITS:

Intellectual property of this report and of the design drawings is owned by General Engineering s.r.l.

author of the text: arch. Manfredo Romeo – other contributes have been mentioned in related paragraphs

© - General Engineering Workgroup -
